Base SDX Platform
Configuration & provisioning
What we do
Add this to any router order and the device arrives configured to your network, bench-tested and enrolled in your InControl2 organization — not pre-registered, configured.
Warranty & licences *
PrimeCare
What PrimeCare covers
Peplink care for the Base SDX Platform. EssentialCare, or EssentialCare+ as the upper tier, for the term you choose.
Total $5,999.00
- Part no.
- BPL-SDX
- Ships
- Next business day · order by 3:00 pm CT
- Shipping
- $55 ground at 12.2 lb · charged by total order weight · rates
- Returns
- 30 days unopened and unregistered · 15% restocking · policy
Not sure this is the right unit?
Talk to an engineer before you buy, not a salesperson. Monday to Friday, 8:00 am – 6:00 pm CT.
- Authorized Peplink e-tailer
- Prices shown — no login, no quote form
- Supported by U.S. network engineers
- 30-day returns on unopened hardware
Spec highlights
Router throughput
12 Gbps
SpeedFusion
1 Gbps
Ethernet WAN
10plus 18 LAN ports
SIM
Up to 8 with FlexModule Plus
Environment
Indoor · Rack0 – 40 °C
Recommended users
2000
eSIM capable802.3at PoE+ output via GE PoE FlexModule, 330WManufacturer datasheet (PDF)

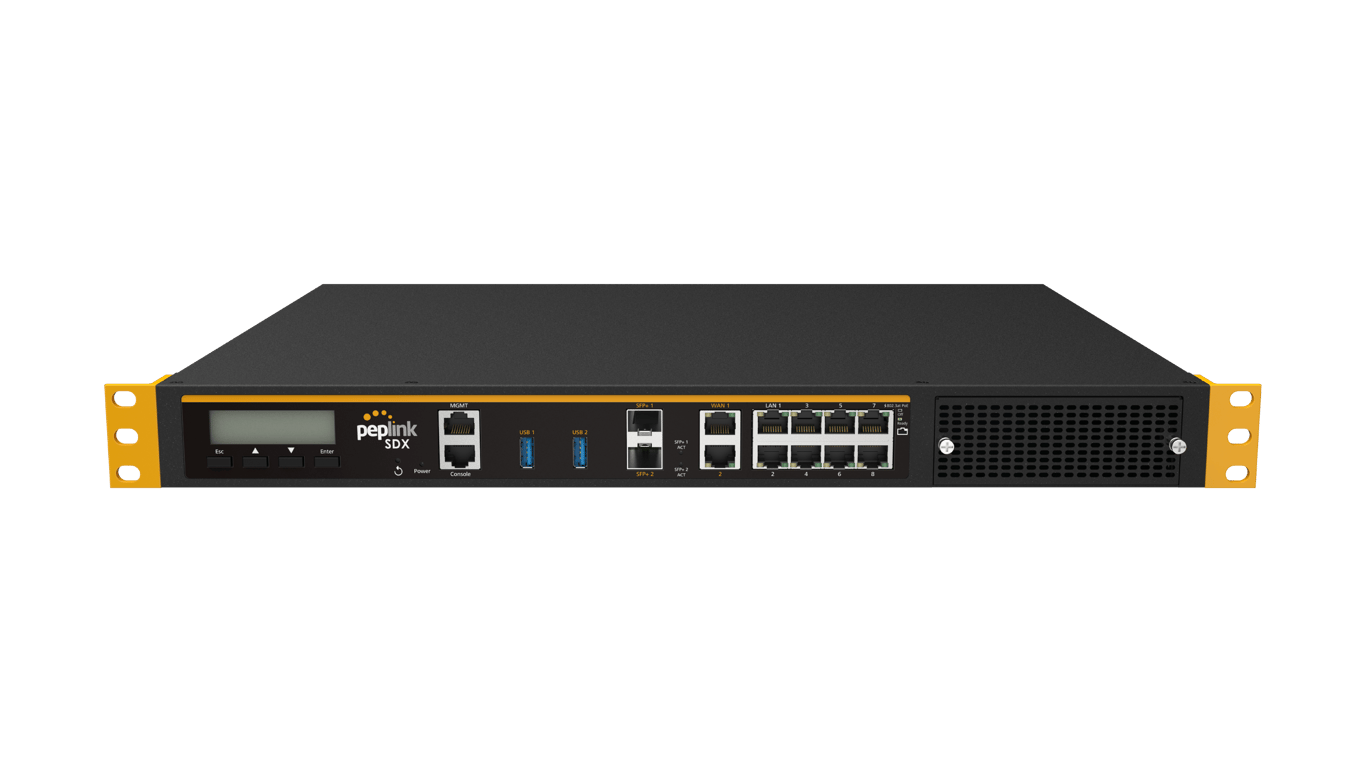

The Peplink Base SDX Platform is a modular SD-WAN platform — 2x GbE WAN, 2x 10GbE SFP, 8x GbE LAN, 2x USB WAN.
Specification highlights: 12 Gbps router throughput; 1 Gbps SpeedFusion; 10 Ethernet WAN ports; Up to 8 with FlexModule Plus; 802.3at PoE+ output via GE PoE FlexModule, 330W.
Deployed by our engineers in fixed branch and retail sites that need wired-plus-cellular failover.
Rated 0 – 40 °C.
Ordering information: BPL-SDX
Specifications
WAN & cellular
- SIM slots
- Up to 8 with FlexModule Plus
- Ethernet WAN ports
- 10
- LAN ports
- 18
Throughput & capacity
- Router throughput
- 12 Gbps
- SpeedFusion throughput
- 1 Gbps
- Recommended users
- 2000
Physical & environmental
- Environment
- Indoor · Rack
- Operating temperature
- 0 – 40 °C
- Power input
- 100-240V AC
- PoE
- 802.3at PoE+ output via GE PoE FlexModule, 330W
Ordering information
- Part number
- BPL-SDX
- Series
- Peplink Modular SD-WAN Platforms
- Manufacturer datasheet
- Open PDF
Specification values are taken from the official Peplink datasheet for this model. Same field names and units on every product page.
Deploying more than one site?
Five units or more, a purchase order, net terms or tax-exempt status — talk to an engineer. We answer with a configuration, not a quote form.
Ask an engineer or call +1 (224) 302-0424
We'll open the form with Base SDX Platform — BPL-SDX already filled in.
Before you order
When does it ship, and what does shipping cost?
In-stock hardware ordered before 3:00 pm CT on a business day ships the next business day. Ground shipping is charged by total order weight — $20 up to 2 lb, $27 to 5 lb, $40 to 10 lb, $55 to 25 lb. Anything over 25 lb ships freight and we quote it before charging you. Some orders carry restrictions; if anything affects your ship date we will contact you.
What does the configuration service actually include?
A U.S. network engineer sets up WAN priorities, SIM and APN settings, SpeedFusion profiles where licensed, Wi-Fi and LAN addressing and firmware, then registers the unit to your InControl2 organization and tests it on a live connection before it ships. Orders including configuration ship in one to two business days rather than the next business day.
Can I return it if the model turns out to be wrong?
Unopened, unregistered hardware can be returned within 30 days of delivery for a refund less a 15% restocking fee and the original shipping cost. Contact us for an RMA number first. Care plans and licences are non-returnable once activated, because activation is irreversible at the manufacturer — so if you are unsure which model fits, call an engineer before you order rather than after.
