Configuration & provisioning
What we do
Add this to any router order and the device arrives configured to your network, bench-tested and enrolled in your InControl2 organization — not pre-registered, configured.
Warranty & licences *
PrimeCare
What PrimeCare covers
Peplink care for the MAX HD2 MBX CAT 18. EssentialCare, or EssentialCare+ as the upper tier, for the term you choose.
Total $6,999.00
- Part no.
- MAX-HD2-MBX-GLTE-G-T
- Ships
- Next business day · order by 3:00 pm CT
- Shipping
- $40 ground at 7.78 lb · charged by total order weight · rates
- Returns
- 30 days unopened and unregistered · 15% restocking · policy
Not sure this is the right unit?
Talk to an engineer before you buy, not a salesperson. Monday to Friday, 8:00 am – 6:00 pm CT.
- Authorized Peplink e-tailer
- Prices shown — no login, no quote form
- Supported by U.S. network engineers
- 30-day returns on unopened hardware
Spec highlights
Router throughput
2.5 Gbps
Cellular
LTE Cat-182 embedded modems
SpeedFusion
600 Mbps
Ethernet WAN
3plus 8 LAN ports
SIM
4 mini-SIM (2 per modem) + eSIM
Wi-Fi
Wi-Fi 5
eSIM capableIgnition sensingUp to 8x 802.3at PoE+ outputManufacturer datasheet (PDF)

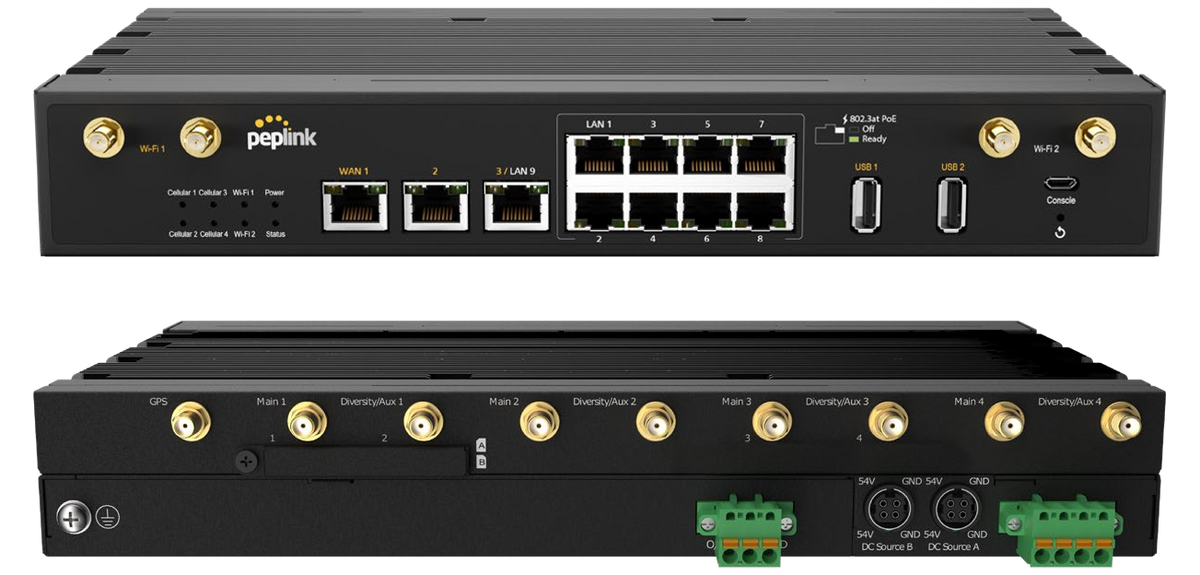

The Pepwave MAX HD2 MBX CAT 18 is a cellular router — 2 CAT 18 Modems / 5G Upgradable.
Specification highlights: 2× LTE Cat-18; 2.5 Gbps router throughput; 600 Mbps SpeedFusion; 3 Ethernet WAN ports; 4 mini-SIM (2 per modem) + eSIM.
Deployed by our engineers in vehicles and fleets running on 12/24 V with a moving cell footprint and vessels and exposed sites bonding Starlink with cellular.
Rated -40 – 65 °C with ignition sensing for permanent vehicle installation.
Ordering information: MAX-HD2-MBX-GLTE-G-T
Specifications
WAN & cellular
- Cellular technology
- LTE Cat-18
- Embedded modems
- 2
- SIM slots
- 4 mini-SIM (2 per modem) + eSIM
- Ethernet WAN ports
- 3
- LAN ports
- 8
- Wi-Fi
- Wi-Fi 5
Throughput & capacity
- Router throughput
- 2.5 Gbps
- SpeedFusion throughput
- 600 Mbps
- Recommended users
- 500
Physical & environmental
- Environment
- Vehicle · Rugged · Indoor
- Operating temperature
- -40 – 65 °C
- Power input
- 12-56V DC or 100-240V AC
- Ignition sensing
- Yes
- PoE
- Up to 8x 802.3at PoE+ output
Ordering information
- Part number
- MAX-HD2-MBX-GLTE-G-T
- Series
- Peplink MAX HD MBX Multi-Cellular Routers
- Manufacturer datasheet
- Open PDF
Specification values are taken from the official Peplink datasheet for this model. Same field names and units on every product page.
Deploying more than one site?
Five units or more, a purchase order, net terms or tax-exempt status — talk to an engineer. We answer with a configuration, not a quote form.
Ask an engineer or call +1 (224) 302-0424
We'll open the form with MAX HD2 MBX CAT 18 — MAX-HD2-MBX-GLTE-G-T already filled in.
Before you order
When does it ship, and what does shipping cost?
In-stock hardware ordered before 3:00 pm CT on a business day ships the next business day. Ground shipping is charged by total order weight — $20 up to 2 lb, $27 to 5 lb, $40 to 10 lb, $55 to 25 lb. Anything over 25 lb ships freight and we quote it before charging you. Some orders carry restrictions; if anything affects your ship date we will contact you.
What does the configuration service actually include?
A U.S. network engineer sets up WAN priorities, SIM and APN settings, SpeedFusion profiles where licensed, Wi-Fi and LAN addressing and firmware, then registers the unit to your InControl2 organization and tests it on a live connection before it ships. Orders including configuration ship in one to two business days rather than the next business day.
Can I return it if the model turns out to be wrong?
Unopened, unregistered hardware can be returned within 30 days of delivery for a refund less a 15% restocking fee and the original shipping cost. Contact us for an RMA number first. Care plans and licences are non-returnable once activated, because activation is irreversible at the manufacturer — so if you are unsure which model fits, call an engineer before you order rather than after.
