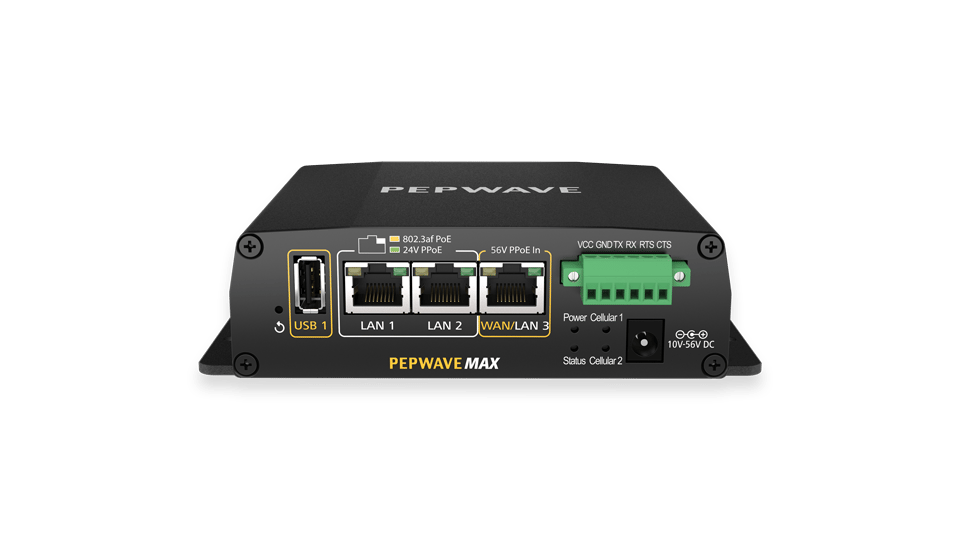

MAX HD2 Mini LTEA
Configuration & provisioning
What we do
Add this to any router order and the device arrives configured to your network, bench-tested and enrolled in your InControl2 organization — not pre-registered, configured.
Warranty & licences *
PrimeCare
What PrimeCare covers
Peplink care for the MAX HD2 Mini LTEA. EssentialCare, or EssentialCare+ as the upper tier, for the term you choose.
Total $2,699.00
- Part no.
- MAX-HD2-MINI-LTEA-W-T
- Ships
- Next business day · order by 3:00 pm CT
- Shipping
- $20 ground at 1.82 lb · charged by total order weight · rates
- Returns
- 30 days unopened and unregistered · 15% restocking · policy
Not sure this is the right unit?
Talk to an engineer before you buy, not a salesperson. Monday to Friday, 8:00 am – 6:00 pm CT.
- Authorized Peplink e-tailer
- Prices shown — no login, no quote form
- Supported by U.S. network engineers
- 30-day returns on unopened hardware
Spec highlights
Router throughput
300 Mbps
Cellular
LTE Cat-62 embedded modems
SpeedFusion
100 Mbps
Ethernet WAN
1plus 2 LAN ports
SIM
4 mini-SIM (2 per modem)
Environment
Indoor · Vehicle · Rugged-40 – 65 °C
eSIM capable1x 802.3at PoE input; up to 2x PoE+ outputManufacturer datasheet (PDF)
The Pepwave MAX HD2 Mini LTEA is a cellular router — For the Americas / EMEA.
Specification highlights: 2× LTE Cat-6; 300 Mbps router throughput; 100 Mbps SpeedFusion; 1 Ethernet WAN port; 4 mini-SIM (2 per modem).
Deployed by our engineers in vehicles and fleets running on 12/24 V with a moving cell footprint and remote workers, RVs and site offices away from a wired connection.
Rated -40 – 65 °C.
Ordering information: MAX-HD2-MINI-LTEA-W-T
Specifications
WAN & cellular
- Cellular technology
- LTE Cat-6
- Embedded modems
- 2
- SIM slots
- 4 mini-SIM (2 per modem)
- Ethernet WAN ports
- 1
- LAN ports
- 2
Throughput & capacity
- Router throughput
- 300 Mbps
- SpeedFusion throughput
- 100 Mbps
- Recommended users
- 150
Physical & environmental
- Environment
- Indoor · Vehicle · Rugged
- Operating temperature
- -40 – 65 °C
- Power input
- 10-56V DC terminal block
- PoE
- 1x 802.3at PoE input; up to 2x PoE+ output
Ordering information
- Part number
- MAX-HD2-MINI-LTEA-W-T
- Series
- Peplink MAX HD Multi-Cellular Routers
- Manufacturer datasheet
- Open PDF
Specification values are taken from the official Peplink datasheet for this model. Same field names and units on every product page.
Deploying more than one site?
Five units or more, a purchase order, net terms or tax-exempt status — talk to an engineer. We answer with a configuration, not a quote form.
Ask an engineer or call +1 (224) 302-0424
We'll open the form with MAX HD2 Mini LTEA — MAX-HD2-MINI-LTEA-W-T already filled in.
Before you order
When does it ship, and what does shipping cost?
In-stock hardware ordered before 3:00 pm CT on a business day ships the next business day. Ground shipping is charged by total order weight — $20 up to 2 lb, $27 to 5 lb, $40 to 10 lb, $55 to 25 lb. Anything over 25 lb ships freight and we quote it before charging you. Some orders carry restrictions; if anything affects your ship date we will contact you.
What does the configuration service actually include?
A U.S. network engineer sets up WAN priorities, SIM and APN settings, SpeedFusion profiles where licensed, Wi-Fi and LAN addressing and firmware, then registers the unit to your InControl2 organization and tests it on a live connection before it ships. Orders including configuration ship in one to two business days rather than the next business day.
Can I return it if the model turns out to be wrong?
Unopened, unregistered hardware can be returned within 30 days of delivery for a refund less a 15% restocking fee and the original shipping cost. Contact us for an RMA number first. Care plans and licences are non-returnable once activated, because activation is irreversible at the manufacturer — so if you are unsure which model fits, call an engineer before you order rather than after.
