SIM Injector
Configuration & provisioning
What we do
Add this to any router order and the device arrives configured to your network, bench-tested and enrolled in your InControl2 organization — not pre-registered, configured.
Warranty & licences *
PrimeCare
What PrimeCare covers
Peplink care for the SIM Injector. EssentialCare, or EssentialCare+ as the upper tier, for the term you choose. Both include an InControl2 subscription; EssentialCare+ adds 24/7 email ticket support.
Total $1,499.00
- Part no.
- SIM-BK8-4E-56V
- Ships
- Next business day · order by 3:00 pm CT
- Shipping
- $20 ground at 1.44 lb · charged by total order weight · rates
- Returns
- 30 days unopened and unregistered · 15% restocking · policy
Not sure this is the right unit?
Talk to an engineer before you buy, not a salesperson. Monday to Friday, 8:00 am – 6:00 pm CT.
- Authorized Peplink e-tailer
- Prices shown — no login, no quote form
- Supported by U.S. network engineers
- 30-day returns on unopened hardware
Spec highlights
SIM
8x Mini-SIM (2FF), active
Environment
Indoor · Vehicle · Rugged-40 – 65 °C
Power input
12-56V DC jack or terminal block
Up to 4x 802.3at PoE+ output, 30W per portManufacturer datasheet (PDF)

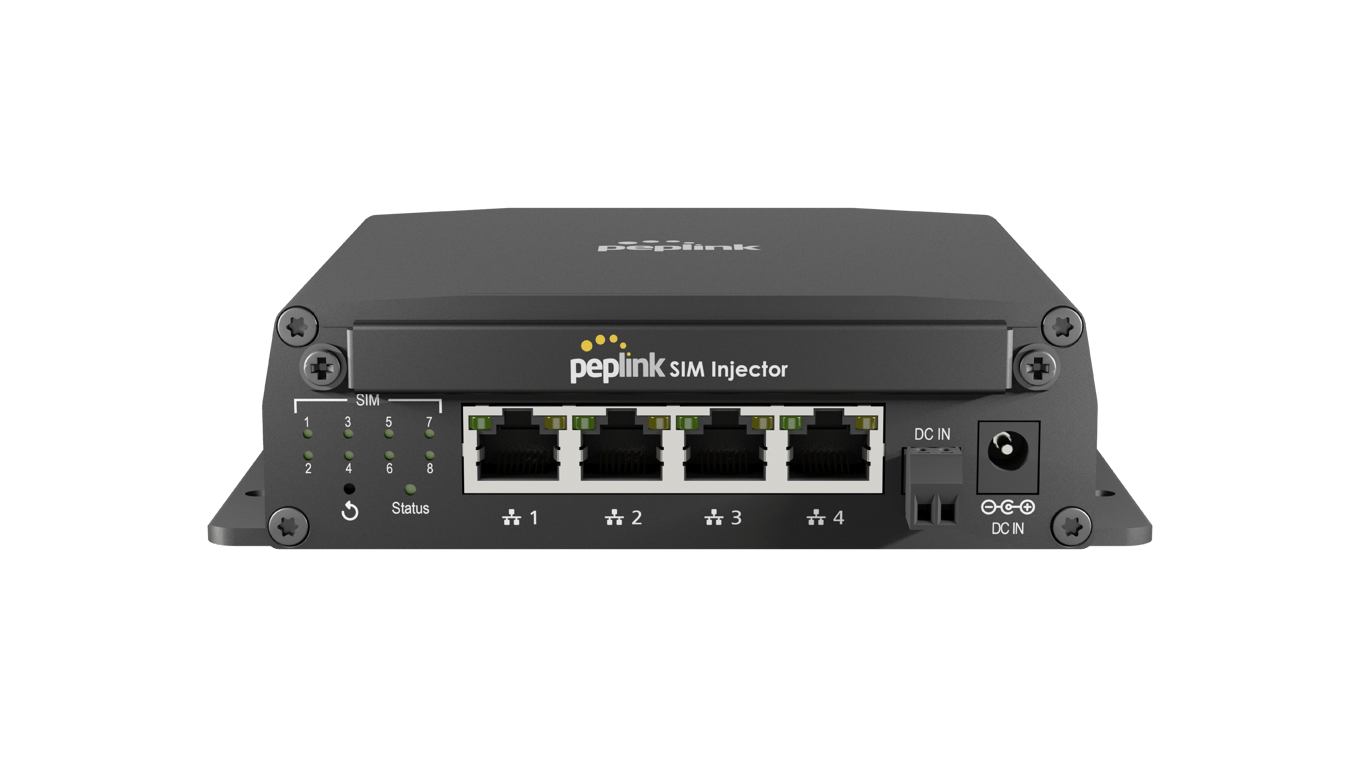

The Peplink SIM Injector is a specialty device — 8 active SIM slots and 4x GE LAN, with up to 4x 802.3at PoE+ outputs at 30W a port.
Specification highlights: 8x Mini-SIM (2FF) active slots; 4 Ethernet ports; 12–56V DC input via jack or terminal block; up to 4x 802.3at PoE+ output.
It does two jobs at once: it puts eight carriers within reach of a router mounted somewhere you cannot easily get to, and it powers that router over the same Ethernet run. That is why it pairs with the Dome range — the Dome goes on the mast, the SIM Injector stays inside.
Two prices, and the cheaper one has a condition. Peplink sells this standalone at $1,499, or at $999 when it is bought together with a MAX HD1 or HD2 Dome. Choose the bundle price only if a Dome is on the same order — we verify this before dispatch.
Rated -40 – 65 °C.
Ordering information: Standalone — SIM-BK8-4E-56V · With Dome — SIM-BK8-4E-56V-DOM
Specifications
WAN & cellular
- SIM slots
- 8x Mini-SIM (2FF), active
- LAN ports
- 4
Physical & environmental
- Environment
- Indoor · Vehicle · Rugged
- Operating temperature
- -40 – 65 °C
- Power input
- 12-56V DC jack or terminal block
- PoE
- Up to 4x 802.3at PoE+ output, 30W per port
Ordering information
- Standalone
- SIM-BK8-4E-56V
- With HD1 / HD2 Dome
- SIM-BK8-4E-56V-DOM
- Series
- Peplink Specialty Products
- Manufacturer datasheet
- Open PDF
Specification values are taken from the official Peplink datasheet for this model. Same field names and units on every product page.
Deploying more than one site?
Five units or more, a purchase order, net terms or tax-exempt status — talk to an engineer. We answer with a configuration, not a quote form.
Ask an engineer or call +1 (224) 302-0424
We'll open the form with SIM Injector — SIM-BK8-4E-56V already filled in.
Before you order
When does it ship, and what does shipping cost?
In-stock hardware ordered before 3:00 pm CT on a business day ships the next business day. Ground shipping is charged by total order weight — $20 up to 2 lb, $27 to 5 lb, $40 to 10 lb, $55 to 25 lb. Anything over 25 lb ships freight and we quote it before charging you. Some orders carry restrictions; if anything affects your ship date we will contact you.
What does the configuration service actually include?
A U.S. network engineer sets up WAN priorities, SIM and APN settings, SpeedFusion profiles where licensed, Wi-Fi and LAN addressing and firmware, then registers the unit to your InControl2 organization and tests it on a live connection before it ships. Orders including configuration ship in one to two business days rather than the next business day.
Can I return it if the model turns out to be wrong?
Unopened, unregistered hardware can be returned within 30 days of delivery for a refund less a 15% restocking fee and the original shipping cost. Contact us for an RMA number first. Care plans and licences are non-returnable once activated, because activation is irreversible at the manufacturer — so if you are unsure which model fits, call an engineer before you order rather than after.
